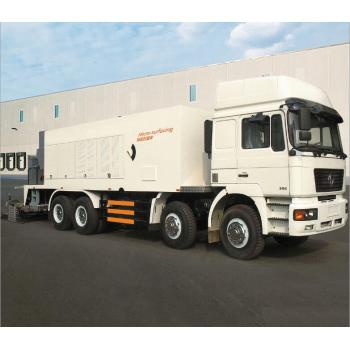

Micro surfacing paver

Micro surfacing paver

Micro surfacing paver
CategoriesMicro-surfacing
AlbumView larger image
BrandIKOM
After-sales Service ProvidedOverseas third-party support available
FOB portShanghai&Ningbo
Terms of PaymentL/C, T/T
Download DOC
Update Time2018-11-17
Detail Information
Main Technical Description

1. Purpose-made low speed chassis with good construction effect as well as high production efficiency.

2. Be controlled by PLC program, and the automatic degree is more approximate to intelligentization.

3.Six independent hydraulic power sources ensure the dynamical stability of each system and noninterference.

4. Double-shaft blade mixer has good slurry effect; the angle of discharging can be adjusted vertically to adapt the construction of ramp pavement.

5. Fluid pipeline of stainless steel prolongs the life of complete machine.

6. Centralized control, indicate pre-warning, humanization design.

7. High & low pressure rinsing devices are more convenient for construction and the maintenance of equipment.

8. Automatic tyre spray system fulfills the construction with special technological requirements.

9. Vibration device of bin settles the phenomenon that the aggregate has frame.

10. Aggregate bin with 55°slant-wall makes the aggregate drop more freely.

11. The complete machine has an elegant appearance.

Main Technical Parameter
Model
ZQZ5255TFC
ZQZ5315TFC
Dimension(mm)
10350×2495×3400
11950×2500×3360
Chassis
SHACMAN/HOWO
Engine power(kw)

196

213
Aggregates Bin Volume(m3)
10
12
Emulsion Tank Volume(L)
3500
4000
Water Tank Volume(L)
3500
4000
Additive Tank Volume(L)
400
600
Cement Addictive Volume(L)
2*500
Discharge Volume Of Mixer(t/min)
≤3.5
Width Of Paver(m)
2.5-4.3
Asphalt Pump
HX
Hydraulic Pump
PERMCO, US
Hydraulic Valve
Germany BUCHER
Hydraulic Motor
DANFOSS, DENMARK
Hydraulic Reversing Valve
Germany ARGO-HYTOS
Vibrating Motor
OL, ITALY
Reduction Gear
Tianjin SEW
Main Electric Unit
Delta, TAIWAN
Text Display
LUOSHENG
Electric Relay
Germany Weidmueller
Mixer
China: Forced double-shaft mixer
Paving Box
IKOM hydraulic spreader box
Product pictures
Aggregates Bin Volume:10m3
Aggregates Bin Volume:10m3
Aggregates Bin Volume:12m3
Aggregates Bin Volume:12m3
Main Parts
Imported asphalt pump
Dongfeng Cummins engine
spreader box
Dual stirring system
