Underbridge Inspection Unit

Underbridge Inspection Unit

Underbridge Inspection Unit
CategoriesMaintenance Equipment
AlbumView larger image
BrandIKOM
After-sales Service ProvidedOverseas third-party support available
FOB portShanghai&Ningbo
Terms of PaymentL/C, T/T
Update Time2019-05-23
Detail Information
Main Technical Description

The uderbridge inspection unit is a vehicle fitted with a three-point hydraulic RAM structure designed to park along bridges so that professional inspectors can walk along the structure to perform their job. The inspection truck is highly stable, lightweight and maneuverable.

Main Technical Parameter
Items
Model 16M
Model 22M
Total length (mm)
11500
12600
Total width (mm)
2500
2500
Total height (mm)
3970
3996
Wheelbase (mm)
5800+1350
1900+4500+1350
The rear suspension (mm)
2950
2730
Kerb mass (kg)
24370
30805
Total mass (kg)
24500
31000
Chassis parameters:
Chassis manufacturers
FAW
Engine power (PS)
280/300
Tire
11.00R20steel wire tyre
Working parameter:
Horizontal operation range of bridge(mm)
8500-16000
11500-22000
Working platform maximum bridge size(mm)
7800
8300
Maximum rated load(kg)
600
Working platform, front end(kg)
300
Work platform bridge under translation angle( °)
180
Translational angle of rotating platform( °)
90
Sidewalk distance(mm)
2800
Crossing barrier height(mm)
3500
4000
Work platform structure
Truss type
Over fence structure
Parallel quadrilateral structure
Operation mode
Manual, wired remote control
Communication mode
Wired, wireless intercom
Monitoring mode
Cable monitoring
Standby power
Honda gasoline unit

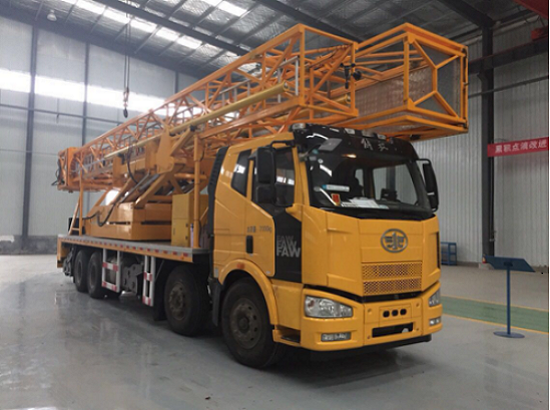

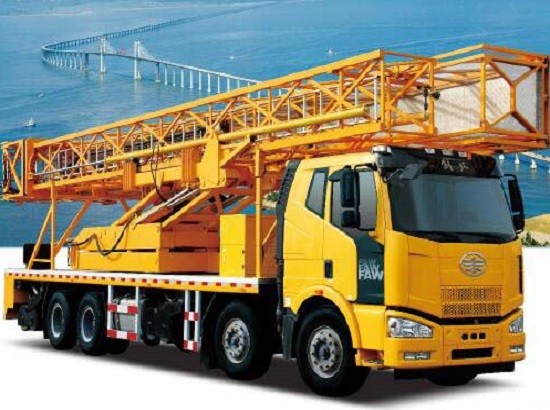

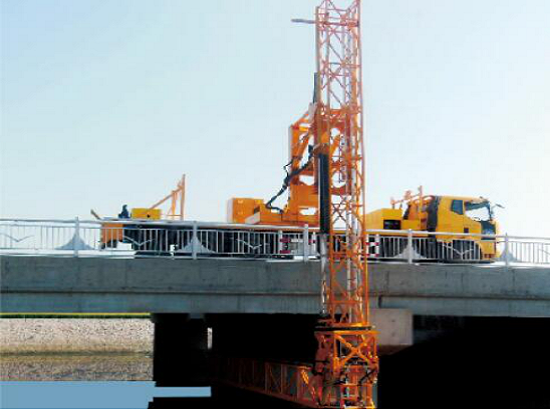

Product pictures
