Dummed asphalt melting equipment

Dummed asphalt melting equipment

Dummed asphalt melting equipment
CategoriesAsphalt Equipment
AlbumView larger image
BrandIKOM
ConditionNew
FOB portSHANGHAI
Terms of PaymentL/C, T/T
Update Time2018-11-17
Detail Information
Main Technical Description
 The design of double-unit structure is adopted for Drummed Asphalt Melting Equipment, composed of the asphalt dumping main equipment unit and the heat-conducting oil boiler unit, and the form of frame structure is applied to its both main-body structures, for the strength and the stability of the units to be reliably ensured. Stainless steel corrugated pipe flexible connection is adopted for the pipeline connection between the two units, typical of simple site dismantlement and installation as well as convenient transportation, especially adaptable to installation and construction on overseas construction sites. Heat-conducting oil “S” coil pipe is mainly employed for heating of the dumping unit, and at the same time the combustion waste gas of the heat-conducting oil boiler is utilized for auxiliary heating, which has effectively improved the fuel utilization efficiency, and reduced energy consumption.
Main Technical Parameter
Model
ZM-TT4
ZM-TT8
Total weight(t)
16
18
Dimension of the equipment(mm)
8000×2100×2600
11000×2550×2600
basic parameter
productivity(t/h)
3~4
8
No. Barrels(Barrel/set)
20
36
capacity of bitumen(m3)
12
the temperature of bitumen(℃)
130-160
asphalt pump(m3/h)
27
Max. Trolley Working speed(m/min)
10.4
11.45
heating system
capacity of condution oil (kw)
470
720
Dimension(mm)
6000×2200×2600
5700×2300×2300
power supply system
total power of electricla(kw)
<30

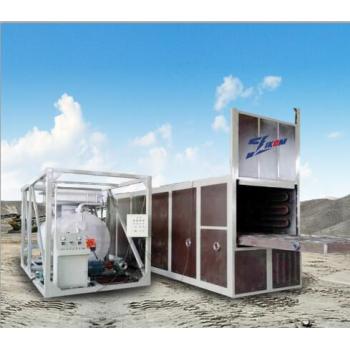

Product pictures
productivity(t/h):3-4
productivity(t/h):8
With boiler
Loading
